Quantum efficiency editor
1. Inputs

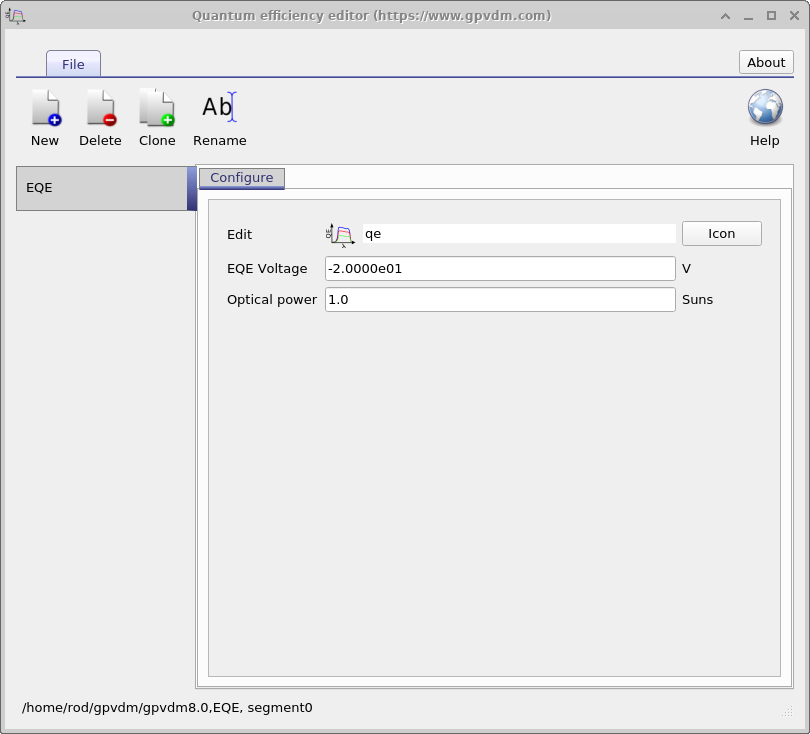

The quantum efficiency editor simulates both EQE and IQE. The configuration window can be used to set the voltage at which EQE and IQE are performed.
2. Outputs
| File name | Description |
|---|---|
| E_eqe.csv | Photon energy vs. EQE |
| E_eqe_norm.csv | Photon energy vs. Normalized EQE |
| E_iqe.csv | Photon energy vs. IQE |
| eqe.csv | Wavelength vs. EQE |
| iqe.csv | Wavelength vs. IQE |
| lam_Gn.csv | Wavelength vs. Average charge carrier generation rate |
